    • Gesture controlled Floor Lamp

      After playing around with my first Arduino, a couple of years ago, I knew I wanted to use it to create a Gesture controlled Japanese Floor lamp. Like one on this picture.
      alt text

      At the time I knew little to nothing about how to design the schematics or how I'd would be able to hook that lamp in to a Home Automation system. Hence I didn't even know what a Home Automation was at the time. Well luckily thanx to MySensors I don't need to know it. I just have to hookup an antenna, and add the correct code into my sketch.

      So that problem was tackled. I think it was about a year ago, that I came across this little gesture sensor. It's sparkfun's APDS-9960. It's a rather expensive sensor used in the Samsung galaxy S5. Now I know that there are cheaper alternatives, but at the time I bought one and it ended up in one of my desk drawers.

      Since I can't do my woodworking during winters, I design the electronics I use in my woodworking projects in the winter. And embed them in my woodworking projects when the temperature is high enough. When I begin thinking about the woodworking projects I want to build this woodworking season, I remembered the little gesture sensor.

      So much for the intro. But if you're still reading, you're probably interested in the real deal. I had a hard time using the APDS-9960. So it took me a lot of hours the get it to work. But I'll share my workarounds with you. The MySensors community has done a lot for me, so I think it's about time to do something back.

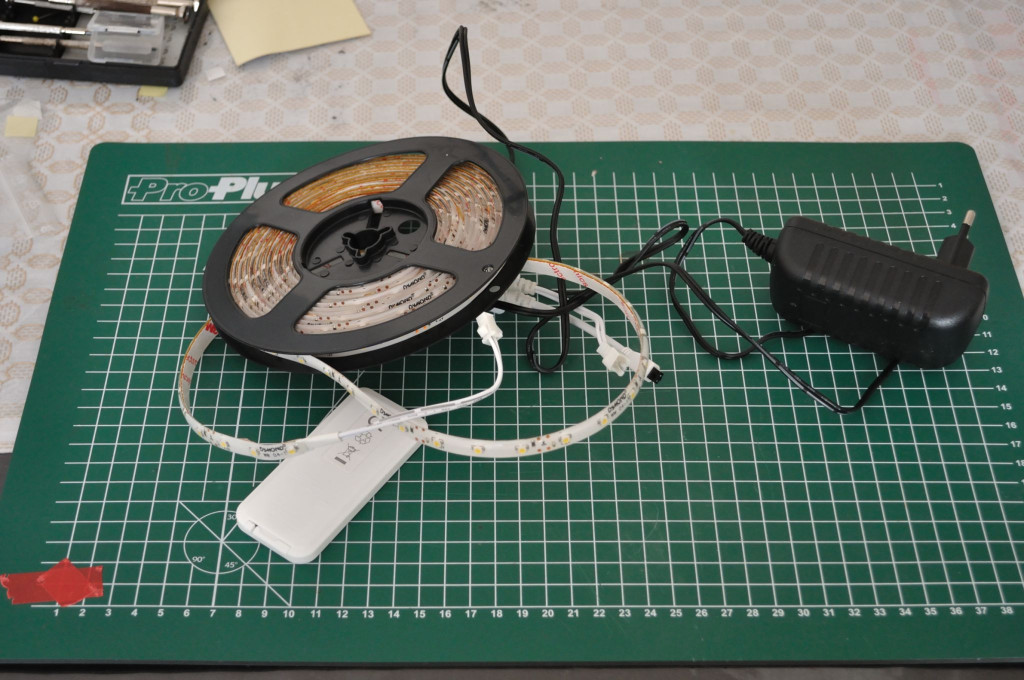

      I started with adjusting the cheap white strip I specially bought for this project. It contained a 5 meter white LED strip, a power adapter and some reusable parts.

      alt text

      The tine plastic housing can easily be opened with a small screw driver.

      alt text

      And now I have acces to some goodies (IR receiver - allways useful, the power plug I'll be using in the final product, and a connector for connecting the LED strip ;-))

      alt text

      It took a just a couple of minutes to desolder all the parts.
      alt text

      And the complete circuit looks like this on my breadboard (small note the 7805CV is not mounted on this picture. I'm using two power adapters during development. One 5V for powering the Arduino circuit and one 12V for powering the LED strip).

      alt text

      Since most project descriptions don't go in much details about the schematics, some of them are just out of my league. That's why I decided to add everything in this post. This project was really complex for me, because the circuit uses 12V, 5V and 3.3V. But besides for the part that I don't think that I use the right capacitors (it works though) the completed circuit looks like this.

      Circuit

      There are a couple of things I want to point out. According to Sparkfun the Pro Mini 3.3V can be fed with 12V. But I blew up my raw pin during the design that's why I added the 7805CV power regulator. I'm using a Wite LED strip, which came with a 12V 1500 milli amp power adapter. At the moment I'm able to use that adapter for feeding both the Arduino circuit and the LED strip. But the adapter gets warm. For me that's okay. I'll be using one meter of the 5 meter led strip at the most. So I'm pretty confident that the original power adapter will provide enough amperage for the complete circuit.

      I've measured the usage of the arduino circuit and it uses about 380 milli amps. Which is stable until the circuit communicates with the gateway - sending new brightness level to the gateway. At that point the circuits absorbs about above 500 milli amp. Again measured without the LED strip consumption.

      I use an N channel Mosfet for controlling the LED strip. That is necessary because LED strips share a common anode. This regarding to most RGB Led's that share a common cathode. (But I'm not an electronics specialist so correct me if I'm wrong.)

      Here's the shopping list:
      Amount Part Type
      1 Electrolytic Capacitor 35V; 4.7µF;
      4 Electrolytic Capacitor 50V; 10µF;
      1 12V White LED strip with power Adapter ( you can use an RGB led strip, but you'll be needing 2 extra MOSFETS in that case)
      1 NRF24L01+
      1 Pro Mini 3.3V (You can use Pro Mini 5V, but you'll have to use a logical level converter, the APDS can only handle 3.3V)
      1 APDS-9960 RGB (you can use the cheaper APSD-9930 you can find on e-bay, but you'll need an altered library!)
      1 Power plug (I salvaged mine from the, from the LED strip package I bought)
      1 IRL B8721 N-channel mosfet (when using a short piece of led strip, a 2N2222 might do. But I had this one lying around and it's able to control high amperage (6 Amp if I'm not mistaken)
      1 LD33 Low-Dropout Voltage Regulator
      1 7805CV Voltage Regulator - 5V (other types of 7805 might do, but I have this ones on spare)

      For the Sketch you'll be needing the Spark fun APDS-9960 library. It can be downloaded here. It's not the best library I've ever used though. But I couldn't find another one.

      After you've hooked up all the electronics the real fun starts (we'll actually it doesn't, playing with the final project is even more fun). One note. The original author of Spark fun, probably had a less sensitive sensor than the one I have. After a long search I've found the solution to get my sensor the work which is:

          apds.setGestureGain( 1 );


      You might need to change that value to your sensor. Valid values can be found in the library, but for convenience they are in the range of 0-3. 0 is very sensitive and 3 is less sensitive.

      The lamp can be controlled from your Home Automation system, as well with gestures. The gestures are:

      • Left swipe turns the lamp off
      • Right swipe turns the lamp on
      • Up swipe raises brightness. If the brightness is already at the max it will indicate this by turning the lamp of for a short moment and back on again.
      • Down swipe lowers the brightness. If the brightness can't be lowered it'll turn the lamp off.

      You can use the gesture sensor in a stand alone sketch as well. After playing with the gesture controlled Lamp I've discovered some use cases in which a gesture controlled lamp or switch is really handy:

      1. Controlling lights under kitchen cabinets. When preparing a meal it's not hygienic to turn on/off a normal switch. With a gesture controlled switch you don't have to touch the switch.
      2. Mount one in your workshop. When working on your car or motor cycle, it'll be certain that you get grease or oil on your hands. When needing light you don't have to touch the switch just use a gesture and you can turn on or off your lighting. That way you don't have to clean the switch after you're done working on your car or whatever it is you are working on.

      If you've reached this point. My appologies for this long post. Thank you that you've found it worth reading. I'll post a follow up after the Japanse Lamp is finished - incl. the mounting of the electronics.

      Here's the Sketch.

      /****************************************************************
        Gesture controlled lamp
        MySensors enabled, gesture controlled lamp.

        March 2016 by Theo

        This lamp can be turned on/off, and dimmed by gestures. And it can be controlled by any Home Automation
        system, that can talk with MySensors.

        The gesture sensor used in this Sketch is an APDS-9960 RGB and Gesture Sensor, sold by SparkFun.

        This Sketch is based upon the GestureTest exampl developped by,
        Shawn Hymel @ SparkFun Electronics on May 30, 2014. See https://github.com/sparkfun/APDS-9960_RGB_and_Gesture_Sensor

        Hardware Connections (APDS-9960):
        IMPORTANT: The APDS-9960 can only accept 3.3V!

         Arduino Pin  APDS-9960 Board  Function

         3.3V         VCC              Power
         GND          GND              Ground
         A4           SDA              I2C Data
         A5           SCL              I2C Clock
         2            INT              Interrupt

        The lamp itself is a white LED strip, controlled by an N channel MOSFET.
      ****************************************************************/
      #include <SPI.h>
      #include <MySensor.h>
      #include <Wire.h>
      #include <SparkFun_APDS9960.h>

      // Pins
      #define APDS9960_INT                      2   // Needs to be an interrupt pin
      #define LED_PIN                           3   // The led PWM pin, that drives the LED strip
      #define MAXDIMLEVELS                     100  // The maximum number of dim levels
      #define BRIGHTNESS_INCREMENT             15   // Dimmer increment for gesture(s)
      #define MAX_LEVEL_REACHED_DELAY          150  // Short blinking delay when increasing the dimmer while the dimmer is already at max
      #define MAX_LEVEL_REACHED_SIGNAL_COUNT   1    // The amount of blinks, when the max dim level already has been reached
      #define CHILD_ID_LIGHT                   1    // The child id of the Node. Only one Node on this sensor though.
      #define LIGHT_OFF                        0    // Constant indicating the lamp on state
      #define LIGHT_ON                         1    // cConstant indicationg light off state
      #define SN "Gesture controlled lamp" // Description of this sketch.
      #define SV                               "1.1" // The version of the Sketch


      // Global Variables
      SparkFun_APDS9960 apds = SparkFun_APDS9960();
      int isr_flag = 0;                // interrupt flag, triggered when a gesture has been dectected

      int LastLightState=LIGHT_OFF;
      int LastDimValue=100;

      int dimlevels[ MAXDIMLEVELS ] =  // PWM values used for translating home automation dimmer levels. This gives smoother transations
        {   0,   1,   2,   3,   4,   5,   6,   7,   8,   9,
           10,  11,  12,  13,  14,  15,  16,  17,  18,  19,
           20,  21,  22,  23,  24,  25,  26,  27,  28,  29,
           30,  31,  32,  35,  39,  42,  46,  49,  52,  56,
           59,  62,  66,  69,  73,  76,  79,  83,  86,  89,
           93,  96, 100, 103, 106, 110, 113, 116, 120, 123,
          126, 130, 133, 137, 140, 144, 147, 150, 154, 157,
          160, 164, 167, 171, 174, 177, 181, 184, 187, 191,
          194, 197, 201, 204, 208, 211, 215, 218, 221, 225,
          228, 231, 235, 238, 242, 245, 246, 250, 251, 255 };

      MySensor gw;
      MyMessage lightMsg(CHILD_ID_LIGHT, V_LIGHT);
      MyMessage dimmerMsg(CHILD_ID_LIGHT, V_DIMMER);

      void setup() {
        gw.begin(incomingMessage, AUTO, false);

        // Send the Sketch Version Information to the Gateway
        gw.sendSketchInfo(SN, SV);

        gw.present(CHILD_ID_LIGHT, S_DIMMER, "floor lamp", true );

        // declare output pin for PWM control of the MOSFET
        pinMode( LED_PIN, OUTPUT );

        // Set interrupt pin as input
        pinMode(APDS9960_INT, INPUT);

        // Initialize interrupt service routine
        attachInterrupt(0, interruptRoutine, FALLING);

        // Initialize APDS-9960 (configure I2C and initial values)
        if ( apds.init() ) {
          // original value is two. But it looks like the modern gesture sensor or more sensitive. 1 does it for me
          apds.setGestureGain( 1 );
        }

        // Start running the APDS-9960 gesture sensor engine
        if ( apds.enableGestureSensor(true) ) {
          LastLightState=LIGHT_OFF;
          LastDimValue=0;
          analogWrite( LED_PIN, 0 );
          gw.request( CHILD_ID_LIGHT, V_PERCENTAGE );
          gw.request( CHILD_ID_LIGHT, V_STATUS );
        }
        //Here you actualy switch on/off the light with the last known dim level
      }

      // The Sketh's main loop
      void loop() {
        if( isr_flag == 1 ) {
          detachInterrupt(0);
          handleGesture();
          isr_flag = 0;
          attachInterrupt(0, interruptRoutine, FALLING);
        }
        gw.process();
      }

      // interrupt handler. Is being traggerd by the gesture sensor whenever a gesture has been detected.
      void interruptRoutine() {
        isr_flag = 1;
      }

      // Determine gesture and handle accordingly.
      void handleGesture() {
        if ( apds.isGestureAvailable() ) {
          switch ( apds.readGesture() ) {
            case DIR_UP:
              if ( LastDimValue + BRIGHTNESS_INCREMENT > ( MAXDIMLEVELS - 1 ) ) {
                for ( int i = 0; i < MAX_LEVEL_REACHED_SIGNAL_COUNT; i++ ) {
                  analogWrite( LED_PIN, dimlevels[ 0 ] );
                  gw.wait( MAX_LEVEL_REACHED_DELAY );
                  analogWrite( LED_PIN, dimlevels[ MAXDIMLEVELS - 1 ] );
                  gw.wait(MAX_LEVEL_REACHED_DELAY );
                }
                LastDimValue = ( MAXDIMLEVELS - 1 );
              }
              else {
                 LastDimValue += BRIGHTNESS_INCREMENT;
              }
              LastLightState = LIGHT_ON;
              SetCurrentState2Hardware();
              break;
            case DIR_DOWN:
              if ( LastDimValue - BRIGHTNESS_INCREMENT <= 0 ) {
                LastDimValue = 0;
              }
              else {
                 LastDimValue -= BRIGHTNESS_INCREMENT;
              }
              if ( LastDimValue == 0 ) {
                LastLightState = LIGHT_OFF;
              }
              else {
                LastLightState = LIGHT_ON;
              }
              SetCurrentState2Hardware();
              break;
            case DIR_LEFT:
              LastLightState = LIGHT_OFF;
              SetCurrentState2Hardware();
              break;
            case DIR_RIGHT:
              LastLightState = LIGHT_ON;
              SetCurrentState2Hardware();
              break;
          }
        }
      }

      void incomingMessage(const MyMessage &message) {
        if (message.type == V_LIGHT) {
          int lstate= atoi( message.data );
          if ((lstate<0)||(lstate>1)) {
            return;
          }
          LastLightState=lstate;
          if ((LastLightState==LIGHT_ON)&&(LastDimValue==0)) {
             //In the case that the Light State = On, but the dimmer value is zero,
             //then something (probably the controller) did something wrong,
             //for the Dim value to 100%
            LastDimValue=100;
          }

          //When receiving a V_LIGHT command we switch the light between OFF and the last received dimmer value
          //This means if you previously set the lights dimmer value to 50%, and turn the light ON
          //it will do so at 50%
        }
        else if (message.type == V_DIMMER) {
          int dimvalue= atoi( message.data );
          if ((dimvalue<0)||(dimvalue>100)) {
            return;
          }
          if (dimvalue==0) {
            LastLightState=LIGHT_OFF;
          }
          else {
            LastLightState=LIGHT_ON;
            LastDimValue=dimvalue;
          }
        }

        //Here you set the actual light state/level
        SetCurrentState2Hardware();
      }

      void SetCurrentState2Hardware() {
        if (LastLightState==LIGHT_OFF) {
           analogWrite( LED_PIN, dimlevels[0] );
        }
        else {
           analogWrite( LED_PIN, dimlevels[ LastDimValue - 1 ] );
        }

        //Send current state to the controller
        SendCurrentState2Controller();
      }

      void SendCurrentState2Controller()
      {
        if ((LastLightState==LIGHT_OFF)||(LastDimValue==0)) {
          gw.send(dimmerMsg.set(0));
        }
        else {
          gw.send(dimmerMsg.set(LastDimValue));
        }
      }

      posted in My Project
      TheoL
      TheoL
    • Free MySensors 2.0 workshop, Friday 9 September in Amersfoort (The Netherlands)

      I’m organizing an entry-level MySensors 2.0 workshop/ master class for those who would like to kick-start in creating MySensors 2.0 based nodes and have little experience in electronics. The workshop will be held on Friday the 9th of September as a side track during Trivento’s annual Summercamp. The theme of this year’s Summercamp is Fast Data and let’s be honest: What is Fast Data without IoT?

      During this 3 hour workshop/ master class you’ll learn:

      • How the MySensors eco-system works and which role a gateway plays in the eco-system.
      • How to connect simple electronic components to an Arduino
      • The difference between AC and DC and why this is important when you connect electronics that have a polarity. (This is just enough to give you a kick-start, because we can not go deeply into electronics during a 3 hour workshop).
      • The anatomy of a sketch for a MySensors node.
      • How to create some simple MySensors nodes (temperature sensor/ light sensor/ RGB light).
      • How you can combine multiple sensors into one node. We’ll be making a temperature/ light level node.
      • Get an overview of the different gateways that are supported by MySensors.
      • How you can secure your nodes by adding signing (and why everyone should do that).

      In order for you to be able to participate you need have some basic knowledge of writing software. Because we unfortunately don't have time during this event to learn you how to write your software.

      If you don't live in the Netherlands, but just happen to be in the neighborhood. The language for the Summercamp and workshop is all English and we're happy to welcome you.

      So if you want to learn about MySensors, want to have some fun and maybe drink a beer after the workshop please don’t hesitate to register for this fun event. This is a BYOL event, which means that you’ll bring your laptop and I’ll provide the Arduinos and the other electronic components you’ll need.

      There’s no fee for participating in this workshop. However, there is a limited number of places available, so please register as soon as possible if you want to participate.

      Finally, the keynote for the Summercamp is also worth mentioning. This will be ‘Challenges and opportunities around elastic data pipelines’ by Jorg Schad, (Distributed Systems Engineer at Mesosphere, Inc.).

      posted in General Discussion
      TheoL
      TheoL
    • MySensorfying a cheap moodlight

      It might be just me, but since I discovered my Sensors, I look at the world differently. I want to put MySensors in everything. So last week I came across some cheap mood-lights in a shop. They're 3 euro's a piece. Before I bought them I checked if they can be opened easy and that was the case.

      The mood-light is a 3 AAA powered diffused 5mm LED with one resistor. The diffused LED only has to pens and in it is an IC that loops through a mood-light program. But I couldn't use the LED, because in the future I want to control the mood-light as an RGB lamp as well. So I stripped the electronics out of the mood-light to see if there's enough space to put in a Arduino Pro Mini 3.3V and a Antenna. It looked like it would fit.

      I ordered a couple Pro Mini 3.3V and ordered a couple of diffused 5mm RGB leds. I put everything on a breadboard and developed a sketch.

      I had a hard time finding a good Mood-light example. Most of the examples on instructables.com didn't have a smooth transition between the different colors. But luckily I found a good library called MoodLight by Kasper Kamperman. You can download the library from his blog http://www.kasperkamperman.com/blog/arduino-moodlight-library/

      The first version implements only a Mood-light. I tried to add the S_RGB but my Domoticz version doesn't support it. So I will put that in the sketch as well. I plan to use that light as a mood-light, but also as warning lamp. E.g. if someone is comming to my front door it will show a green color.

      /**
       * MySensors Moodlight
       * Version 1.0
       * created September 22nd 2015
       * by Theo
       *
       * Change log:
       * 27-09-2015 Stable version released after a couple days of testing.
       *
       * Description:
       *   Sketch for creating a cheap MySensors controlled MoodLight which also can be controlled as an dimmable RGB light.
       *
       * Future plans:
       * - enable it as an RGB lamp as well. Have to wait until Domoticz supports it. Which will probably be in the next stable version.
       *
       * Dependencies:
       *   MoodLight.h
       *
       * Hardware used:
       *   Arduino Pro Mini 3.3V
       *   Difused 5mm RGB led
       *   LR2401 Antenna
       *   one 4.7Uf capacitor
       *   three 220 Ohm resistors, to prevent the RGB led from burning out, but might be lower because we're feeding it only 3.3V instead of 5V
       *   A really cheap 3 AAA battery powered moodLight (found it in a store for around 3 euros)
       *
       * Total costs without the regulator circuit (also adapter not included, used an old phone power adapter)
       *   Arduino 6.00 euro
       *   RGB led 0.60 euro
       *   antenna 2.00 euro
       *   4.7 uF  0.30 euro
       *   resistors 0.00 euro had them laying around doing nothing
       *   moodlight housing 3.00 euro
       *   wires and solder etc. 0.00 euro had that laying around ass well
       *
       * Sums up to 11.90 euro add 2 euro to it for wires etc and it's still below 15 euro. Nice!!! ;-)
       */

      /**
       * Include libraries.
       */
      #include <MoodLight.h>  // great library for moodlight implementations.
      #include <SPI.h>        // needed for the Antenna
      #include <MySensor.h>   // include the real magic.

      /**
       * declare Pins used by the sketch. Use #define because that the compiler will replace it so it saves a bit of memory
       */
      #define REDPIN 3              // pwm pin with red led (Only use a PWM that is not being occupied by the antenna)
      #define GREENPIN 5            // pwm pin with green led (Only use a PWM that is not being occupied by the antenna)
      #define BLUEPIN 6             // pwm pin with blue led (Only use a PWM that is not being occupied by the antenna)
      #define MOODLIGHTDELAY 175    // the amount of time a particular moodlight value is being shown before the next one will be shown
      #define SATURATION 255        // use value between 0 - 255 <--- This is a candidate to remove
      #define BRIGHTNESS 255        // use value between 0 - 255 <--- This is a candidate to remove
      #define MLHUEUPPERLEVEL 359   // The higher bound of the ml's hue factor
      #define SN "Moodlight"        // Define the Sketch's name
      #define SV "1.0"              // Define the sketch's version
      #define CHILD_ID_MOODLIGHT 0  // Define the child ID of the moodlight

      /**
       * Declare new data types, enum etc
       */
      // Light program modes
      enum LIGHTMODE {
        LIGHTOFF = 0,
        MOODLIGHT = 1,
        RGBVALUE = 2   // reserved for future useage
      };

      /**
       * Declare global variables (haven't looked into what saturation and brightness will do for the moodlight)
       */
      int hue = 0; // use value between 0 - 359
      MoodLight ml = MoodLight(); // create MoodLight object
      int currentLightMode = LIGHTOFF;
      long RGB_values[3] = {0,0,0};

      MySensor gw;
      MyMessage lightMsg( CHILD_ID_MOODLIGHT, V_LIGHT);

      /**
       * Initialize Sketch. Declare pins and MySensors etc.
       */
      void setup() {
        // Serial.begin( 115200 );
        // Setup PWM pins for output
        pinMode( REDPIN, OUTPUT );
        pinMode( GREENPIN, OUTPUT );
        pinMode( BLUEPIN, OUTPUT );

         // initialize ml for first time display.
         ml.setHSB(hue, SATURATION , BRIGHTNESS );

        // Initialize mySensor gateway
        gw.begin( incomingMessage );
        gw.sendSketchInfo(SN, SV);

        // Register the LED Dimmable Light with the gateway
        gw.present( CHILD_ID_MOODLIGHT, S_LIGHT );
        // It just me being neurotic, but inform controller that power level is 100%
        gw.sendBatteryLevel( 100 );

        // Request the current Moodlight status from the controller.
        gw.request( CHILD_ID_MOODLIGHT, V_LIGHT );
      }

      /*
       * Calculate red, green, blue values based upon current hue, saturation and brightness.
       * Display the new values and adjust the hue to the next step.
       */
      void setAndShowNextMoodlightValue() {
        // assign current values to the ml object
        ml.setHSB( hue, SATURATION, BRIGHTNESS );

        // read the Red, Green and Blue values and assign them to the led pins
        analogWrite( REDPIN, ml.getRed() );
        analogWrite( GREENPIN, ml.getGreen() );
        analogWrite( BLUEPIN, ml.getBlue() );

        hue++; // set the next moodlight step
        if ( hue > MLHUEUPPERLEVEL ) { // adjust if we've reached the upperlevel
          hue = 0;
        }
      }

      /**
       * Main loop of the Sketch
       */
      void loop() {
        if ( currentLightMode == MOODLIGHT ) {
          setAndShowNextMoodlightValue();
        }
        gw.wait( MOODLIGHTDELAY );
      }

      /**
       * Callback function for handling messages received from the gateway.
       */
      void incomingMessage(const MyMessage &message) {
        if ( message.sensor == CHILD_ID_MOODLIGHT && message.type == V_LIGHT ) { // received a Light Status from the gateway
          currentLightMode = message.getBool() == 1 ? MOODLIGHT : LIGHTOFF;
          // adjust the RGB led to the (new) light state
          if ( currentLightMode == MOODLIGHT ) {
            analogWrite( REDPIN, ml.getRed() );
            analogWrite( GREENPIN, ml.getGreen() );
            analogWrite( BLUEPIN, ml.getBlue() );
          }
          else {
            analogWrite( REDPIN, 0 );
            analogWrite( GREENPIN, 0 );
            analogWrite( BLUEPIN, 0 );
          }
        }
      }


      So after playing with the mood-light on the breadboard for a couple of days. Just to see if it's stable. I finally found some time to solder the Arduino and the Antenna and mount everything in the mood-light.

      I cut some dupont cables in half and soldered them directly on the proMini. I was lucky that I had the same colors as used in the connecting the radio article on the mysensor build site. So it'll be very easy to replace the radio when needed. There's also a 4,7 uf cap that I stuck directly in the VCC and ground pins of the dupont cables.

      It was really hard to mount the electronics in the light, because you have all most no working space. But I managed to do it.

      Also I soldered the 220 ohm resistors directly on the ProMini and soldered the LED wires to the resistor. I used double sided carpenters tape to stick the arduino on the lamp. Double sided tape is really strong. I use it to put my templates on wood, if I want to route a pattern in the wood. Believe me it's strong.

      So here are some photo's of the mood-light in action.


      Sorry I wasn't able to rotate the photo's. The circuit is really easy. I power the NRF24L01 directly from the ProMini 3.3V. Each pin that is connected to the RGB led, connects through a 220Ohm resistor. I used pins 3, 5 and 6 to control the LED, because they're PWM pins.

      I'll have to learn Fritzing. I've been playing with it, but I couldn't find the NRF24L01 component.

      posted in My Project
      TheoL
      TheoL
    • Library for thresholded readings of sensors

      Since this is not really a hardware project, Ive decided to post this just on the forum.

      I bought the Sense Bender a couple of months ago. I'm not only happy with the Sense Bender itself, but also by the example Sketch. It changed the way I'm thinking about sending sensor values to the gateway. There's absolutely no need to send the values immediately when the change. I really love the threshold way of sending values.

      For those of you who don't know the Sense Bender sketch. It sends the temp and humidity values only every 5 minutes or if their values have changed a threshold value after the last value send. To simplify things for my self and to be able to reuse it, I've created a library for this. It really makes the sketch part easy. You just register the sensors, add some callback functions, call the check threshold method in the loop and the library will:

      • ask for a sensor's value when it needs it;
      • tell you when you need to send a value to the library.

      Here's the sketch I've created today. It combines a Si7021 Temp + humidity sensor, a BMP180 pressure sensor and a cheap photo diode LM393 light level sensor. And only reports their values by using the ThresholdUtil library. It makes creating thresholded sensor nodes so easy, that I'm happy to share it with everyone.

      Note: I'm testing this library right now. It looks bug free. So I've released it as a buy me a beer if you happen to meet me and like this library. Or throw it away if you don't like it.

      /**
         Room conditions node. Measure temperature, humidity, lightlevel and pressure.

         Copyright (c) ByTheo

         Description:
         This Node demonstrates the useage of the ThresholdUtil library, by combining a temperature, humidity, lightlevel and barometric sensors
         It also utilizes the Forecast algorithm from the MySensors build page, which for this purpose has been put in a separate library

         Developped on a ProMini 3.3V. Sensors used:
         - BMP180 Pressure sensor (can also read temperature but not used by this Node)
         - SI7021 Humidity and temperature sensor
         - Photo Diode LM393 sensor (bought an Aliexpress

         History
           August 20th 2016 - Initial version

         This program is free software; you can redistribute it and/or
         modify it under the terms of the GNU General Public License
         version 2 as published by the Free Software Foundation.

       *******************************
      */

      #include <SPI.h>
      #include <MySensor.h>
      #include <Wire.h>
      #include <SI7021.h>
      #include <Adafruit_BMP085.h>
      #include "ThresholdUtil.h"
      #include "WeatherForecast.h"

      // Uncomment when debugging
      // #define RC_DEBUG

      // Define Arduino Pins used by sensors A4 and A5 are also used for i2c bus
      #define LIGHT_SENSOR_ANALOG_PIN A0
      #define LIGHT_SENSOR_DIGITAL_PIN 3

      // The altitude of the location where the sensor is being placed. Adjust to your location
      #define ALTITUDE 33.0

      // Define constants for children used by Node
      #define TEMPEARTURE_SENSOR_CHILD_ID  0
      #define HUMIDITY_SENSOR_CHILD_ID     1
      #define LIGHTLEVEL_SENSOR_CHILD_ID   2
      #define PRESSURE_SENSOR_CHILD_ID     3

      // Declare Sensor ID's used for ThresholdUtil library
      #define TEMPEARTURE_SENSOR_ID 1
      #define HUMIDITY_SENSOR_ID    2
      #define LIGHTLEVEL_SENSOR_ID  3
      #define PRESSURE_SENSOR_ID    4

      // Declare Sketch Name and Version
      #define MYS_SKETCH_NAME "Improved room conditions"
      #define MYS_SKETCH_VERSION "1.0"

      // Variabe used for remembering lastForeCast send to the gateway
      int lastForecast = -1;

      // Create objecs for i2c sensors
      Adafruit_BMP085 bmp = Adafruit_BMP085();
      SI7021 sensor;

      // Declare MySensors class and messages
      MySensor gw;
      MyMessage tempMsg( TEMPEARTURE_SENSOR_CHILD_ID, V_TEMP );
      MyMessage pressureMsg( PRESSURE_SENSOR_CHILD_ID, V_PRESSURE);
      MyMessage forecastMsg( PRESSURE_SENSOR_CHILD_ID, V_FORECAST);
      MyMessage msgHum(HUMIDITY_SENSOR_CHILD_ID, V_HUM);
      MyMessage lightLevelMsg(LIGHTLEVEL_SENSOR_CHILD_ID, V_LIGHT_LEVEL);

      /**
       * Setup method. This will initialize the i2c sensors, register Thresholds. Initializes MySensors and presents the children of the node. Finally the initial values are being send
       * to the gateway
       */
      void setup() {
      #ifdef RC_DEBUG
        Serial.begin( 115200 );
      #endif
        // initialize I2C sensors
        sensor.begin();
        bmp.begin();

        // register sensors and their thresholds
        registerThresholdedSensor( TEMPEARTURE_SENSOR_CHILD_ID, TEMPEARTURE_SENSOR_ID, TEMPERATURE_SENSOR, 0.5,  5, 60  ); // read every 5 sec and report at least every 5 minute
        registerThresholdedSensor( HUMIDITY_SENSOR_CHILD_ID,    HUMIDITY_SENSOR_ID,    HUMIDTY_SENSOR,     1.0, 10, 30  ); // read every 5 sec and report at least every 5 minute
        registerThresholdedSensor( LIGHTLEVEL_SENSOR_CHILD_ID,  LIGHTLEVEL_SENSOR_ID,  LIGHTLEVEL_SENSOR,  2.0,  1, 300 ); // read every 5 sec and report at least every 5 minute
        registerThresholdedSensor( PRESSURE_SENSOR_CHILD_ID,    PRESSURE_SENSOR_ID,    PRESSURE_SENSOR,    0.5, 60, 10  ); // every minute. report at least every 10. Forecast algorithm wants new value every minute

        // Register the node to the gateway
        gw.begin();

        // Send the sketch version information to the gateway and Controller
        gw.sendSketchInfo( MYS_SKETCH_NAME, MYS_SKETCH_VERSION );
        gw.wait( 50 ); // give radio the time to register the child

        gw.sendBatteryLevel( 100, true );
        gw.wait( 50 ); // give radio the time to register the child

        // Register sensors to gw (they will be created as child devices)
        gw.present( PRESSURE_SENSOR_CHILD_ID, S_BARO, "Barometer", true );
        gw.wait( 50 ); // give radio the time to register the child
        gw.present( TEMPEARTURE_SENSOR_CHILD_ID, S_TEMP, "Temperature", true );
        gw.wait( 50 ); // give radio the time to register the child
        gw.present( HUMIDITY_SENSOR_CHILD_ID, S_HUM, "Humidity", true );
        gw.wait( 50 ); // give radio the time to register the child
        gw.present( LIGHTLEVEL_SENSOR_CHILD_ID, S_LIGHT_LEVEL, "Light level", true );
        gw.wait( 50 ); // give radio the time to register the child

        checkThresholdedSensors( readSensorValue, reportSensorValue ); // Send initial values to the gateway
      }

      /*
       * Call back method for ThresholdUtil library, will ask for sensor values when the library needs them
       *
       * ps. don't forget to put a * in front of the value inside the method. The library will not receive any
       * values if you forget the *
       */
      void readSensorValue( uint8_t aSensorId, ThreshHoldedSensorType aType, float *value ) {
        switch ( aSensorId ) {
          case TEMPEARTURE_SENSOR_ID:
            if ( aType == TEMPERATURE_SENSOR ) {
              *value = sensor.getCelsiusHundredths() / 100.0;
            }
            break;
          case HUMIDITY_SENSOR_ID:
            if ( aType == HUMIDTY_SENSOR ) {
              *value = sensor.getHumidityPercent() * 1.0;
            }
            break;
          case LIGHTLEVEL_SENSOR_ID:
            if ( aType == LIGHTLEVEL_SENSOR ) {
              *value = (float)( 1023 - analogRead( LIGHT_SENSOR_ANALOG_PIN ) ) / 10.23;
            }
            break;
          case PRESSURE_SENSOR_ID:
            if ( aType == PRESSURE_SENSOR ) {
              float pressure = bmp.readSealevelPressure( ALTITUDE ) / 100.0;
              *value = pressure;
              int forecast = sample( pressure );
              if (forecast != lastForecast) {
                gw.send( forecastMsg.set( weather[ forecast ] ), true );
                gw.wait( 50 );
                lastForecast = forecast;
      #ifdef RC_DEBUG
                Serial.print( "New forecast " ); Serial.println( forecast );
      #endif
              }
            }
            break;
        }
      }

      /**
       * Call back function being called by the thresholdUtil library whenever a threshold or forced transmit has been detected
       */
      void reportSensorValue( uint8_t child_id, uint8_t sensor_id, ThreshHoldedSensorType sensor_type, float value ) {
        switch ( child_id ) {
          case TEMPEARTURE_SENSOR_CHILD_ID:
      #ifdef RC_DEBUG
            Serial.print( "Temperature " ); Serial.print( value, 1 ); Serial.println( "C" );
      #endif
            gw.send(tempMsg.set(value, 1), true ); // Send temperature with 1 decimal precision
            break;
          case HUMIDITY_SENSOR_CHILD_ID:
      #ifdef RC_DEBUG
            Serial.print( "Humidity " ); Serial.print( value, 0 ); Serial.println( "%" );
      #endif
            gw.send(msgHum.set( value, 1 ), true ); // Send temperature with 1 decimal precision
            break;
          case LIGHTLEVEL_SENSOR_CHILD_ID:
      #ifdef RC_DEBUG
            Serial.print( "Light level " ); Serial.print( value, 0 ); Serial.println( "%" );
      #endif
            gw.send( lightLevelMsg.set( value, 0 ), true );
            break;
          case PRESSURE_SENSOR_CHILD_ID:
      #ifdef RC_DEBUG
            Serial.print( "Pressure " ); Serial.print( value, 1 ); Serial.println( " hPa" );
      #endif
            gw.send( pressureMsg.set( value, 0 ), true );
            break;
        }
        gw.wait( 50 );
      }

      /**
       * loop method. Basically we only call the checkTresholdedSensor method of the ThresholdUtil library
       */
      void loop() {
        checkThresholdedSensors( readSensorValue, reportSensorValue );
        gw.wait( 50 );
      }


      Here is the fritzing. I forgot the lightlevel sensor, but you can find how to wire it on the MySensors main page. For stability I power nothing from the Arduino. I use a Pro Mini 3.3V which I power with 5V from an adapter. I've used a cheap aliexpress buck converter and set it to 3.3V. That's my 3.3V power for the sensors and the radio.

      Fritzing

      Library and examples can be downloaded from my github ThresholdUtil.h For the code above you'll also need the WeatherForecast.h libraty, which is just the forecast algorithm from the MySensors build page that I've refactored to a separate .h file.

      posted in My Project
      TheoL
      TheoL
    • RE: 💬 Sensebender Gateway

      It's has been a long time since I've posted on this forum.Today I received a note form the postal service that a package from a foreign country has arrived at my local postal office. Can't wait until tomorrow, just to see this beauty.

      Now I have to find some time to get it running ;-(

      posted in OpenHardware.io
      TheoL
      TheoL
    • RE: Sensebender Micro

      I just received two sensebenders. I'm really impressed by the great engineering behind the board. I can't wait to heat up my soldering iron. I love them!

      posted in Announcements
      TheoL
      TheoL
    • RE: Multimeter recommendation?

      I volunteered to teach some of my colleagues how to create projects with an Arduino. The final lesson will be creating MySensors based projects. At the moment there are 20 people who assigned for my course. If only the half of them wants to continue creating MySensors and other cool projects, I have a group of people that'll br big enough to order things with discount. That's why I follow topics like this with much interest.

      posted in General Discussion
      TheoL
      TheoL
    • Reinventing the motion controlled outside lamp

      The former owners of my house installed a PIR sensors on my front door and the PIR motion controller is connected directlty to a lamp that's mounted next to my frontdoor. The thing that always bugged me, is that it turns on the light for the amount of minutes that it's set for. That causes the lamp to burn longer then necessary most of time, or that I have to wave my hand in front of the sensor whenever I'm talking to someone while standing in front of my door.

      This weekend I designed a new node that I'll be using instead of the current PIR motion sensor. I'm still thinking about how I can mount the PIR sensor in a waterproof housing. But the sensor works as follows:

      1. It will keep the light on for 20 seconds after the last movement has been detected. The PIR sensor has been set to smallest movement detection time, which is about 2 seconds. This knowledge is programmed into the sensor, because there was always a short amount of delay between motion detection and turning on the relay. This is an improvement on how a motion sensor normally functions. Which is an amount of time after the first motion detection I've tested it and the light is on when I need it and off when I don't need it.
      2. Whether the relay that's controlling the light has to be turned on when motion is detected, will be controlled by Domoticz. I have a different use case for this kind of sensor where I want to able to turn on the relay on only when I'm a sleep or not at home. A kind of surveillance light.
      3. A doorsensor - since I have enough pins and memory left, I might as well monitor when the door is opened and closed
      4. A DS18b20 sensor. This is also for future useage. For now I just measure the outside temperature. But I've not included this temp sensor in Domoticz.
      5. Each movement is reported to the Domotica controller.

      I'll add a Fritzing schema in a couple of days. I'm learning a lot about Fritzling lately. Here is how it looks on a PCB (not the best quality PCB). All used pin's can be looked up in the Sketch for now.


      Parts used:

      • Arduino Nano I power the relay and the PIR directly from the Nano's 5V output;
      • A NRF24L01+ radio powered directly from the 3.3v output of the nano
      • 4,7 uf capacitor for stabilizing the radio
      • PIR motion sensor
      • relay board
      • DS18B20 temperature sensor with a 4K7 Ohm resistor over VCC and data pin
      • a red 5mm led for motion indication, this will light up regardless of the fact that the relay has to be turned on or not.
      • 220 ohm resister between digital out and the VCC of the led

      I'll post a follow up of how I mounted this in a Waterproof box and how I mounted the PIR sensor in a waterproof housing.

      This is the Sketch:

      /**
       * Door, movement and temperature switch.
       *
       * This sensor has three main functions:
       * - A PIR Sensor for sensing movement around my front door. Each detected movement is being reported to the MySensors gateway.
       *   if the NIGHTMODE switch is on, it will also turn on the relay when a movement is being detected. (See design decisions)
       * - A door sensor for monitoring when the door of my little workshop is open or closed. Will use this in the future to trigger
       *   an alarm if the door is opened when we do not want it to be opened. E.g. when I'm a sleep at night.
       * - Since we've got some extra pins that are not in use, we might as well monitor the workshop's temperature.
       *
       * Created: September 26th 2015
       * Version: 1.1
       * Author:  by Theo
       * Website: http://www.houtbewerken-voor-dummies.com/domotica-beweging-in-je-tuin-meten
       *
       * Changelog:
       * 02-10-2015 - V1.1 Added function to leave the relay on for a while after the last detected movement.
       * 26-09-2015 - V1.0 initial version
       *
       * Design decision(s):
       * - Use a Dalas DS18b20 as a temperature sensor. It's much faster than a DHT11 or DHT22. We don't need a super accurate sensor, we're not
       *   going to control anything based upon the temperature in the Workshop.
       * - Add a dummy Light node for letting the PIR sensor controlling a relay. The switch needs to be turned on and off by the domotica controller
       *   when it's dark or not. In an earlier version I controlled the relay from my Domotica Controller, but I had a delay of about 1 second before the
       *   relay was switched on. Which was unacceptable to me. It would have been nice to read the delay value from Domoticz, but Domoticz doesn't allow  user variables for MySensors nodes. Vera does, but I don't have Vera so I can't test and develop it.
       */

      // Import the necessary libraries
      #include <MySensor.h>
      #include <SPI.h>
      #include <Bounce2.h>
      #include <DallasTemperature.h>
      #include <OneWire.h>

      // define constants. #define is more memory friendly than using static variables.
      #define TEMP_CHILD_ID 0
      #define MOTION_CHILD_ID 1
      #define SUNSET_CHILD_ID 2
      #define DOOR_CHILD_ID 3
      #define DOORSENSOR_PIN  4  // Arduino input pin for button/reed switch
      #define MOTIONSENSOR_PIN 5 // Arduino input pin for PIR motion sensor
      #define MOTIONLED_PIN 6    // Arduino output pun for visualization of detecting motion
      #define RELAY_PIN 7    // Arduino output pun for visualization of detecting motion
      #define ONE_WIRE_BUS 3     // Pin where dallas Ds18b20 sensor is connected
      #define TEMPERATURE_READING_INTERVAL 600000 // temperature reading interval in ms (min * 60000) in production we'll use 10 minutes
      #define LIGHTOFFDELAY 20000 // The amount of milliseconds the relay will be switched off after the last movement has been deteced (We'll use 20 seconds). Vera users can use a Vera variable for this. But I can not test this with Domoticz.

      // define sketch name and version
      #define SN "FrontdoorMotionDetection"
      #define SV "1.1"

      // Declare and initialize objects.
      MySensor gw;
      OneWire oneWire(ONE_WIRE_BUS); // Setup a oneWire instance to communicate with any OneWire devices (not just Maxim/Dallas temperature ICs)
      DallasTemperature dt_sensor(&oneWire); // Pass the oneWire reference to Dallas Temperature.
      Bounce doorDebouncer = Bounce();   // declare a software debounce for debouncing the door reed relay switch
      Bounce motionDebouncer = Bounce(); // declare a software debounce for debouncing the PIR motion sensor

      // declare and initialize global variables. Used to store old sensor and interval readings.
      int oldDoorSensorValue = -1;    // remember the door sensor's current state for detecting changes
      int oldMotionSensorValue = -1;  // remember the PIR motion sensor's current state for detecting changes
      float lastTemperature = 0.0;    // remember the temperature for detecting changes
      bool sunsetActive = false;      // state for indicating whether the relay has to be controllered by motion (domotica controller should set this to on after sunset and off after sunrise
      unsigned long previousMillis = 0; // interval variable for temperature sensor reading
      unsigned long scheduledRelayOffMillis = 0; // Scheduler for determining when the relay has to be switched off

      // Declare messages that will be sent to the MySensor's gateway.
      MyMessage doorMsg( DOOR_CHILD_ID, V_TRIPPED );
      MyMessage tempMsg( TEMP_CHILD_ID, V_TEMP );
      MyMessage motionMsg( MOTION_CHILD_ID, V_TRIPPED );

      // Initialization code for the sketch
      void setup() {
      //  Serial.begin( 115200 ); // uncomment during debugging.

        // setup a connection to the MySensor's gateway and request an ID if we do not have one yet.
        gw.begin(incomingMessage);
        gw.sendSketchInfo(SN, SV);

        // Initialize Dalles temp sensor
        dt_sensor.begin();
        dt_sensor.setWaitForConversion( false );

        // initialize the door sensor so that the arduino can read it's value. And use internal
        // pullup
        pinMode( DOORSENSOR_PIN, INPUT_PULLUP );
        // setup debouncer
        doorDebouncer.attach( DOORSENSOR_PIN );
        doorDebouncer.interval( 5 );

        // initialize PIR motion sensor
        pinMode( MOTIONSENSOR_PIN, INPUT_PULLUP );
        // setup debouncer
        motionDebouncer.attach( MOTIONSENSOR_PIN );
        motionDebouncer.interval( 5 );

        // initialize PIR visualization LED
        pinMode( MOTIONLED_PIN, OUTPUT );

        // initialize RELAY
        pinMode( RELAY_PIN, OUTPUT );
       //  Serial.println( "Testing relay" );
        // Testing relay just to let to knew everything is allright.. Used to test turnRelayOn and turnRelayOff method development. I liked it and kept it.
        for ( int i=0; i <3; i++ ) {
          turnOnRelay();
          gw.wait( 2000 );
      // delay(2000);
          turnOffRelay();
          gw.wait( 2000 );
      //delay(2000);
        }

        // Register binary input sensors to gw (they will be created as child devices)
        gw.present( DOOR_CHILD_ID, S_DOOR);
        gw.present( MOTION_CHILD_ID, S_MOTION );
        gw.present( TEMP_CHILD_ID, S_TEMP  );
        gw.present( SUNSET_CHILD_ID, S_LIGHT );
        gw.sendBatteryLevel( 100, false ); // Let the Domotica controller no that we're a 100%
                                                                     // powered sensor.
        gw.request( SUNSET_CHILD_ID, V_LIGHT ); // request current sunset state from
                                                                   // controller

        // check temperature. Next reading will occur after first interval has been reached.
        // so check the temperature as an initial reading
        checkTemperature();
      }

      /**
       * Turn off the relay to which a light will be connected
       */
      void turnOnRelay() {
        digitalWrite( RELAY_PIN, 0 ); // Relay needs inverted input. HIGH meaning off and LOW meaning ON
      }

      /**
       * Turn on the relay to which a light will be connected
       */
      void turnOffRelay() {
        digitalWrite( RELAY_PIN, 1 ); // Relay needs inverted input. HIGH meaning off and LOW meaning ON
      }

      /**
       * Check current temperature and send changes to the MySensors gateway
       */
      void checkTemperature() {
      //  Serial.println( "Checking temp" );
        // Fetch and round temperature to one decimal
        // Fetch temperatures from Dallas sensors
        dt_sensor.requestTemperatures();
        // query conversion time and sleep until conversion completed
        int16_t conversionTime = dt_sensor.millisToWaitForConversion( dt_sensor.getResolution() );
        // use gw.wait instead of Arduino's delay. That way the gw.process() is still working in the background
        // and we'll be able te receive messages from the Domotica controller.
        gw.wait(conversionTime);
      // delay(conversionTime);
        float temperature = static_cast<float>(static_cast<int>((dt_sensor.getTempCByIndex(0)) * 10.)) / 10.;
        if ( temperature < 85.0 && temperature > -127.0 && temperature != lastTemperature ) {
          lastTemperature = temperature;
          gw.send( tempMsg.set( temperature, 1 ) );
      // Serial.println( temperature );
        }
      }

      /**
       * Check the door sensor for state changes and send the state to the MySensor gateway of the state has been changed
       */
      void checkDoorSensor() {
        doorDebouncer.update();

        // Get the update value
        int value = doorDebouncer.read();

        if (value != oldDoorSensorValue ) {
           // Notify the gateway of the new door status
           gw.send( doorMsg.set( value==HIGH ? 1 : 0 ) );
      // Serial.println( (String)value + " door state " );
           oldDoorSensorValue = value;
        }
      }

      /**
       * Check the motion sensor for state changes and send the state to the MySensor gateway of the state has been changed
       */
      void checkMotionSensor() {
        motionDebouncer.update();

        // Get the update value
        int value = motionDebouncer.read();
        if (value != oldMotionSensorValue ) {
           // Notify the gateway of the new door status
           gw.send( motionMsg.set( value==HIGH ? 1 : 0 ) );
      // Serial.println( (String)value + " motion state" );
           oldMotionSensorValue = value;
           digitalWrite( MOTIONLED_PIN, value );
           if ( sunsetActive == true ) { // check whether the active motion mode is set on to turn on relay and schedule for next relay off time
             // check whether motion has been detected
             if ( value ==   1 ) {
               digitalWrite( RELAY_PIN, LOW ); // activate relay. But only when the OUTDOORLIGHT mode is active.
               // calculate next off interval if motion has been detected
               scheduledRelayOffMillis = millis() + LIGHTOFFDELAY;
             }
           }
        }
      }

      /**
       * Main loop.
       */
      void loop() {
        // check if the temperature needs to be read.
        unsigned long currentMillis = millis();
        if (currentMillis - previousMillis >= TEMPERATURE_READING_INTERVAL ) {
          previousMillis = currentMillis;
          checkTemperature();
        }
        checkDoorSensor();
        checkMotionSensor();
        // check if the relay has to be turned off. Which will be LIGHTOFFDELAY milliseconds after last detected movement.
        currentMillis = millis();
        if ( digitalRead( RELAY_PIN ) == LOW && currentMillis >= scheduledRelayOffMillis ) {
          turnOffRelay();
        }
        gw.process(); // No delaying this needs to be a real-time sensor. At least for the door and motion sensor.
      }

      /**
       * Call back handler, for handling messages send by the MySensors gateway
       */
      void incomingMessage(const MyMessage &message) {
        if ( message.type == V_LIGHT ) {
          // check if the SUNSET mode's state changed
          if ( message.sensor == SUNSET_CHILD_ID ) {
            sunsetActive = message.getBool();
            // check if light needs to be turned on or off.
            bool relayOn = ( digitalRead( RELAY_PIN ) == LOW );
      //       Serial.println( (String)relayOn + " relais status" );
            if ( sunsetActive == true && relayOn == false ) {
               turnOnRelay();
            }
            else if ( sunsetActive == false && relayOn == true ) {
               turnOffRelay();
            }
          }
        }
      }

      posted in My Project
      TheoL
      TheoL
    • RE: Free MySensors 2.0 workshop, Friday 9 September in Amersfoort (The Netherlands)

      @tbowmo We had German, Belgium, Dutch and visitors from Belarus. That got me thinking we might be able to organize an international meeting next year. Would be great to do this in one weekend. Start on Friday with some beers. Have some presentations and do some projects during Saturdays and Sundays. 😉

      posted in General Discussion
      TheoL
      TheoL
    • RE: My experiences with MySensors

      @felix-haverkamp I'm sorry to hear that Felix. In my own experience MySensors works fine with the NRF24L01+ sensors. I have full range throughout my entire house. For my it wasn't a frustrating experience. I followed the instructions and it worked in most cases directly. Good to hear that you have found something that suits your needs.

      posted in My Project
      TheoL
      TheoL

    Latest posts made by TheoL

    • RE: Where did everyone go?

      It would be great to see some improvements added to MySensors lib. Like a good message Queue and stuff like that. Ways to get more state out of the lib so you can provide a bit more user feedback. Right now I have some of those in my own lib. When I have time I'll post some on this forum. So others might benefit.

      But I'm currently hooked up to modular synths. Learning a lot of analog technology. Which broadens my Arduino horizon.

      posted in General Discussion
      TheoL
      TheoL
    • Merry X-mas

      Hey all,

      I wanna wish you all the best X-mas - I know it's a little but early - and I wish you all some awesome projects in 2022. I hope we can get a creative spirit in 2022 and create cool things together.

      posted in My Project
      TheoL
      TheoL
    • RE: Problems ethernet GW with ESP8266- NodeMcu V3.4

      @perIpI I know for sure d3 and d4 can give troubles with interrupts. As it can prevent the ESP from being booted.

      I recently created a Wemos Mini d1 node. That works without any problems. But I use NRF24L01.

      What happens when you comment out #include <MySensors.h> ?? I assume it would run. But use Serial.begin( 115200); and Serial.println( "Test" ); in the setup

      Maybe someone like @Yveaux can help

      posted in Troubleshooting
      TheoL
      TheoL
    • RE: Problems ethernet GW with ESP8266- NodeMcu V3.4

      @perIpI not sure if it's the cause. But try disabling the interrupt. So disconnect d1 and remove the interrupt config.

      posted in Troubleshooting
      TheoL
      TheoL
    • RE: Where did everyone go?

      @zboblamont That's what I love about my sensors. I created my own "SMART" lights, whit fairy light led strings. To provide sufficient light and are manual operable as long as they have power xd

      Lately I have to turn off some of my Ikea lightbubles after each update of the gateway. As they are greyed out in the app. If you're not on time replacing the switch batteries, getting everything setup again is a nightmatr

      I do use Inter For Things. Like wether prediction for watering the garden. But It's not bad if it misses one day.

      posted in General Discussion
      TheoL
      TheoL
    • RE: Problems ethernet GW with ESP8266- NodeMcu V3.4

      @perIpI Something is causing your esp to reboot. To be able to help finding the cause, providing a wiring diagram and the sketch can help

      reset causes:
      The codes are :

      0 -> normal startup by power on
      1 -> hardware watch dog reset
      2 -> software watch dog reset (From an exception)
      3 -> software watch dog reset system_restart (Possibly unfed watchdog got angry)
      4 -> soft restart (Possibly with a restart command)
      5 -> wake up from deep-sleep


      So it's in the code, as you get a software reset caused by an exception

      posted in Troubleshooting
      TheoL
      TheoL
    • RE: Where did everyone go?

      @zboblamont I'd never have my house logic or my data in the cloud. Logic means you can't do much if you're internet is gone. And data, well I don't want all data like when I'm at home in the cloud :). But maybe I'm old fashioned

      posted in General Discussion
      TheoL
      TheoL
    • RE: Where did everyone go?

      What I miss is the creativity. In the beginning everybody had crazy ideas and build awesome projects. I'd like to see that back xd

      posted in General Discussion
      TheoL
      TheoL
    • RE: Where did everyone go?

      @Dizzwold This is not the right topic. And perhaps not the right forum. I think it's best to ask this in the candle forum

      posted in General Discussion
      TheoL
      TheoL
