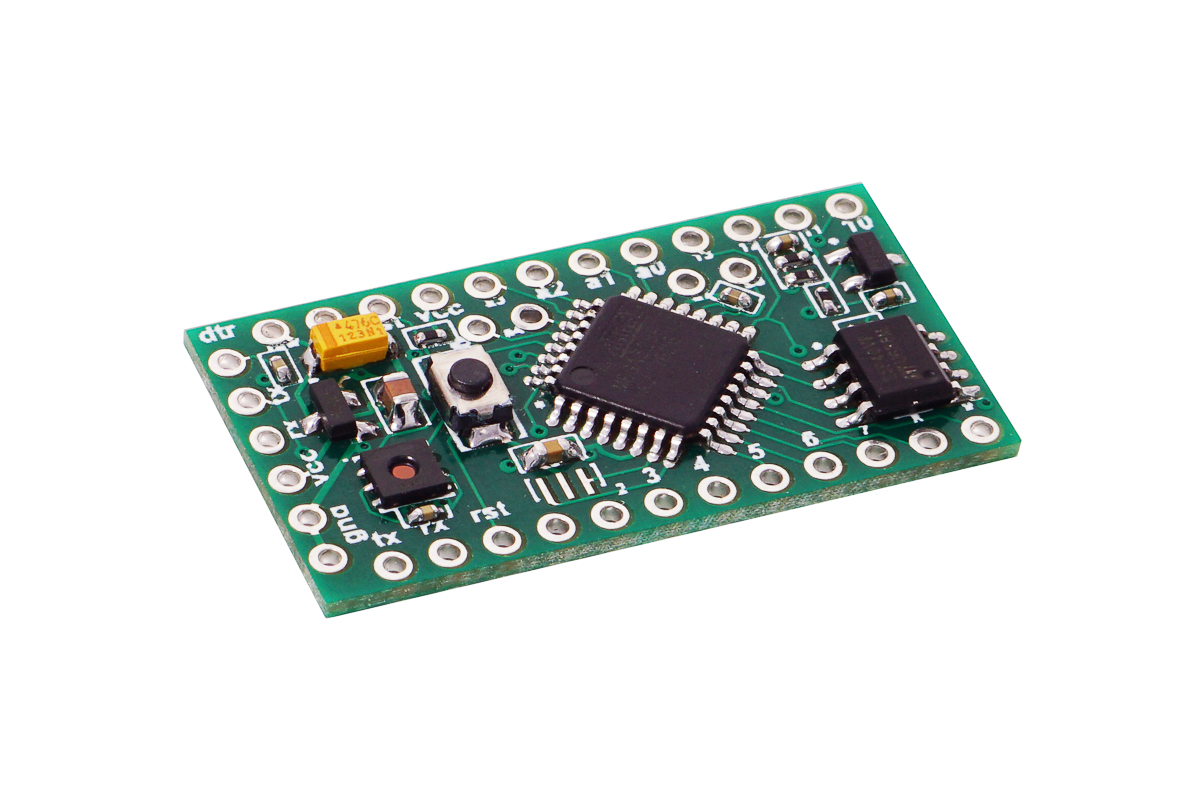

💬 MySensors Easy Pro Mini

openhardware.io last edited by openhardware.io

https://www.openhardware.io/view/410/MySensors-Easy-Pro-Mini
Reply Quote 1
1 Reply Last reply
scalz Hardware Contributor last edited by

@Koresh nice design as usual
Reply Quote 0
1 Reply Last reply
NeverDie Hero Member last edited by

Since it's not wireless, how do you envision this being used?
Reply Quote 0
1 Reply Last reply
sundberg84 Hardware Contributor last edited by sundberg84 @NeverDie

@NeverDie - You could att it to a https://www.openhardware.io/view/4/EasyNewbie-PCB-for-MySensors and get all the benefits from both. I like that it includes ATSHA204A.
Reply Quote 0
1 Reply Last reply
Koresh Contest Winner last edited by

First version of this board does not contain mistakes and works properly. I will remove "work in progress" mark after some tests soon.
Reply Quote 1
1 Reply Last reply
mfalkvidd Mod last edited by @Koresh

@Koresh very nice. Do you plan to sell these assembled? If so, is there an estimated price point?
Reply Quote 0
1 Reply Last reply
terxw last edited by

Hello, can you post BOM please,
according to schematics tantalum schould be 100uF bat tantalum cap in picture is 4.7uF
Reply Quote 0
